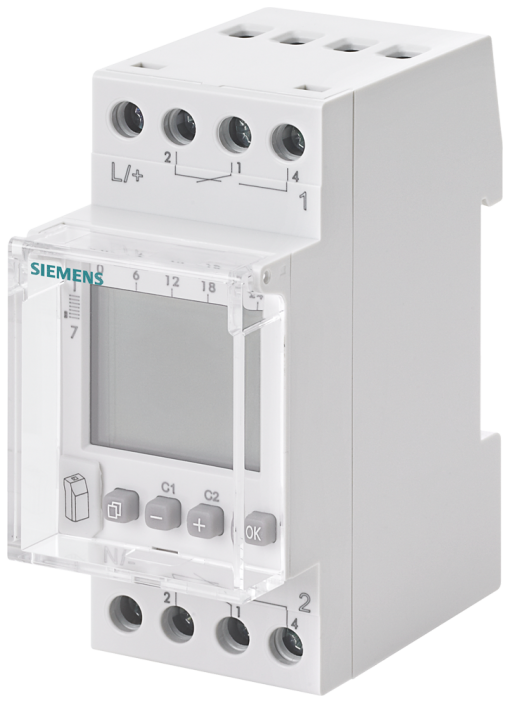

Weekly time switch Profi Digital 24V 16A 2 channels 2MW
Management and Measuring Devices
Weekly time switch Profi Digital 24V 16A 2 channels 2MW
Manufacturer Ref:
7LF45222
Nortécnica Ref:
EAN:
4001869473567
Description
Technical Information
Attributes
Mounting method
DIN rail

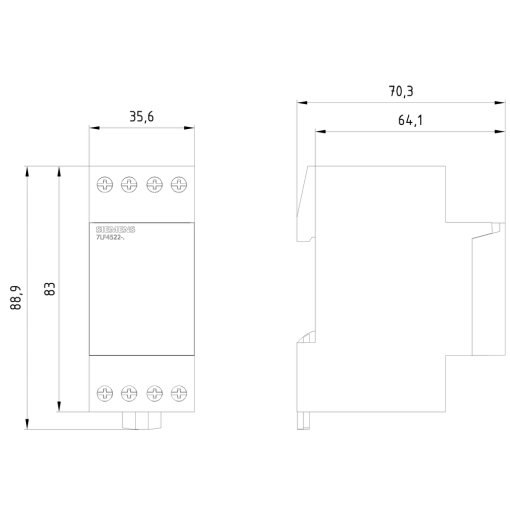

Width
36
Height
83
Depth
70
Number of contacts
2
Number of memory locations
28
Astro program
No
Number of channels
2
Radio-controlled
No
Weekly program
Yes
Annual program
No
Contact type
-
GPS global positioning system
-
Width in number of modular spacings
2
60 min program
Yes
24 h program
Yes
Holiday program
Yes
Random program
Yes
Impulse program
Yes
Cycle program
Yes
Mains synchronous
Yes
Quartz controlled
No
Automatic switching summerwinter time
Yes
Suitable for manual operation
Yes
Switching preselection
Yes
Voltage type supply voltage
ACDC
Potential free switch contact
Yes
External programming
-
Radio-controlled DCF77
-
Supply voltage
-
Hour meter
Yes
Frequency supply voltage
0
Autonomy in years
-
Autonomy in hours
-
EF004855
0.016666666
EF004856
-
Nominal switching current at 250 V AC
16
Text guidance in display
Yes
Degree of protection IP
IP20
Accuracy per day
0.1
External push button input
No
With memory card
-
Max. switching power LED
-
Brands
Siemens AG
Technical Sheet
